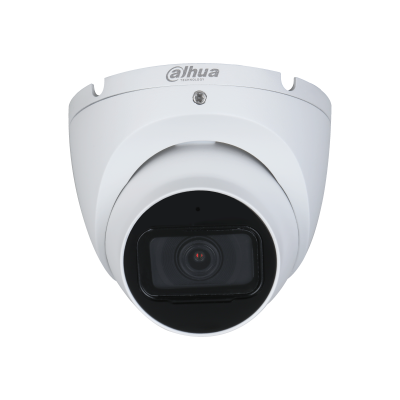

2 MP Starlight HDCVI Motorized Vari-focal IR Eyeball Camera

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Pixel

2 MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s

S/N Ratio

> 65 dB

Min. Illumination

0.001 Lux/F1.6, 30 IRE, 0 Lux IR on

Illumination Distance

60 m (196.9 ft)

Illuminator On/Off Control

Auto;

Illuminator Number

2 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Motorized Vari-focal

Auto Focus

Yes

Mount Type

φ14

Focal Length

2.7 mm-13.5 mm

Max. Aperture

F1.6

Field of View

Diagonal: 131°–35°
Horizontal: 108°–30°
Vertical: 56°–17°

Iris Type

Fixed

Close Focus Distance

0.8 m (2.6 ft )

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.7 mm

44.1 m

(144.7 ft)

17.6 m

(57.7 ft)

8.8 m

(28.9 ft)

4.4 m

(14.4 ft)

13.5 mm

144.8 m (475.1 ft)

57.9 m

(190 ft)

28.9 m

(94.8 ft)

14.8 m

(48.6 ft)
